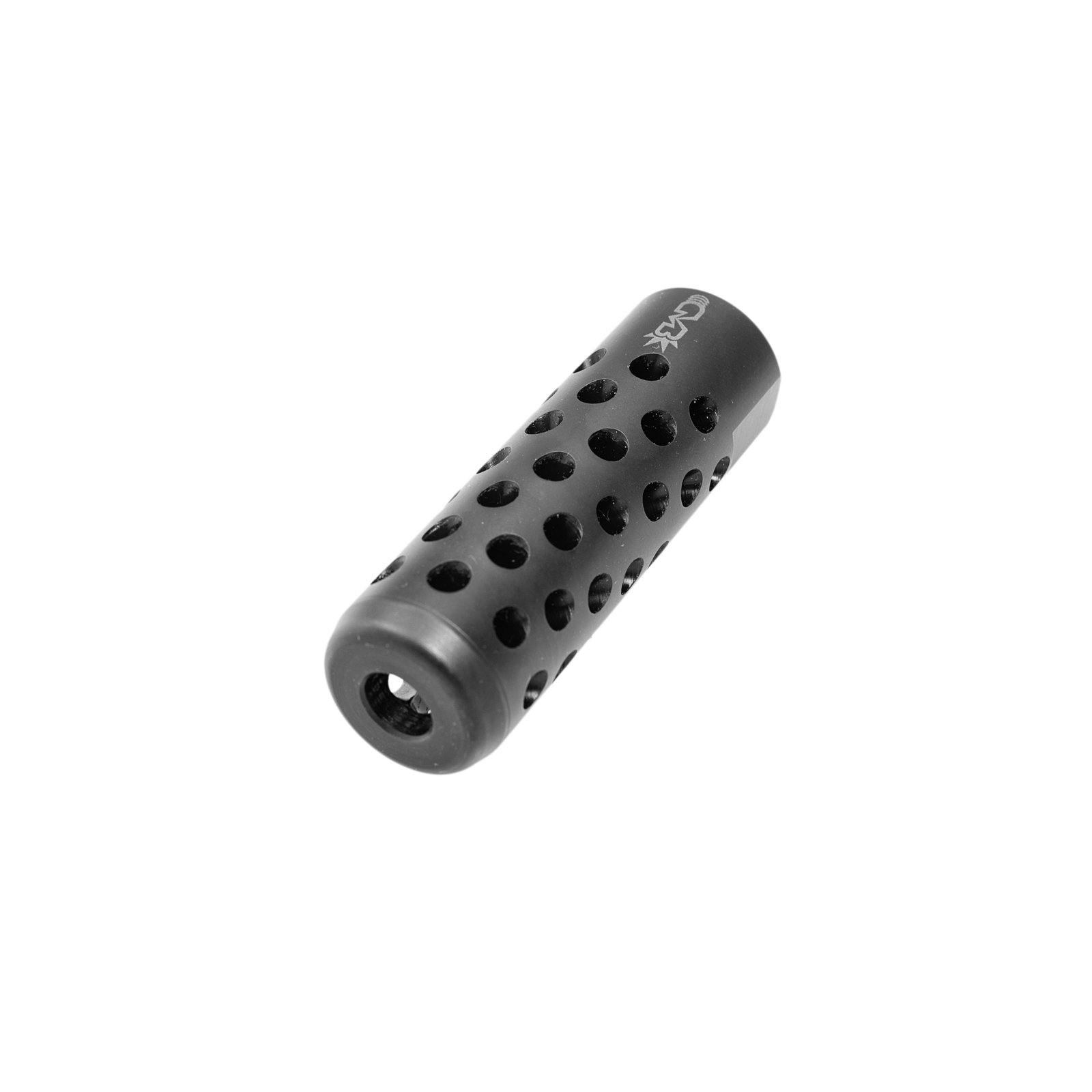

GEN5 Helical High Performance Muzzle Brake

5H

GEN5 Helical High Performance Muzzle Brake 5H

The new GEN5 Helical High Performance Muzzle Brake improves the design of the Original Helical. The new design more efficiently captures the hyper-velocity gases that exit the bore just after the bullet. The GEN5 Helical takes advantage of the state of the art Computational Fluid Dynamics software currently available. Designed with frequent shooters in mind, the baffles catch gases at a slight back angle greatly increasing recoil reduction with little over pressure to the shooter as possible. Paired with the US15 Shroud Jacket system, the GEN5 Helical is great for close quarters, near walls and obstacles. The GEN5 Helical will serve 3-gun competitors, military, law enforcement and operators well. Requires no timing or leveling as the ports are equally spaced around the outside diameter.


Performance Data (sled-recoil testing):

System: 308WIN 16" PWS MK216

Load: Hand loaded 155gr. OTM over 48.0gr BLC2 2670FPS avg

Relative Recoil Reduction: 63%


Choose from these threads & bores:


Key Features:

  • Dimensions: 1" diameter x 3.0" long (USPSA, IDPA & SOF legal dimensions)
  • EASILY ADD CUSTOM THREADS WITH PRECISION THREAD ADAPTERS
  • Weight: 4-6oz depending on thread and bore combo
  • Black mil-spec finish
  • MAY BE PERMANENTLY PINNED TO 14.5" BARRELS TO MEET 16" LENGTH REQUIREMENT (3/32" diameter pin hole on right wrench flat)
  • Optimized ports for maximum brake performance and low noise from shooters position
  • 360 degree ports = no timing or leveling
  • Wrench flats on muzzle brake
  • FULL AUTO RATED
  • Crush or peel washers not included (Lock Nuts here)
  • Designed in and Made in USA with USA alloy steel!




$49.5 In stock
Standard Thread & Bore Size

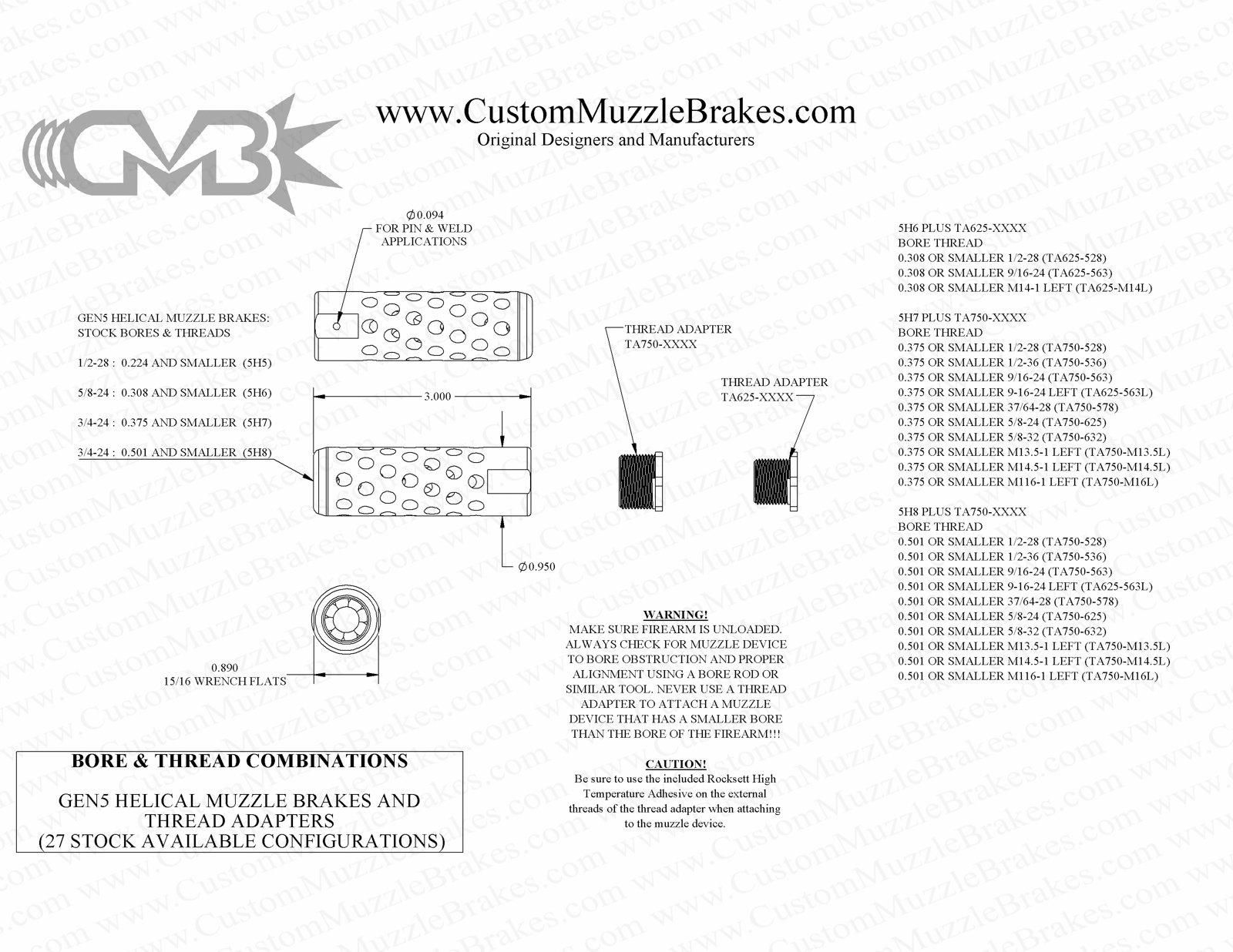

GEN5 Helical High Performance Muzzle Brake GEN5 HELICAL Thread Adapter Combinations and Basic Measurements GEN5 Helical High Performance Muzzle Brake GEN5 Helical High Performance Muzzle Brake GEN5 Helical High Performance Muzzle Brake GEN5 Helical High Performance Muzzle Brake GEN5 Helical High Performance Muzzle Brake GEN5 Helical High Performance Muzzle Brake GEN5 Helical High Performance Muzzle Brake GEN5 Helical High Performance Muzzle Brake GEN5 Helical High Performance Muzzle Brake GEN5 Helical High Performance Muzzle Brake GEN5 Helical High Performance Muzzle Brake GEN5 Helical High Performance Muzzle Brake GEN5 Helical High Performance Muzzle Brake
